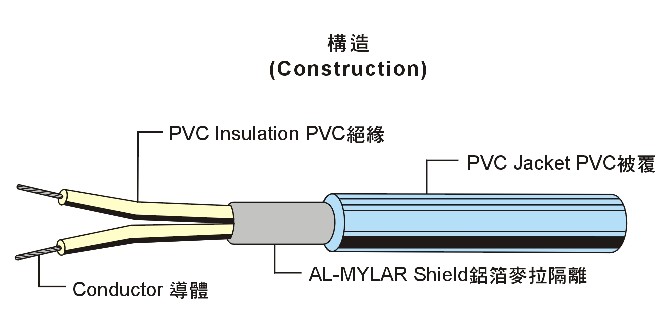

UL2095 Multi-Core Shielded Wire 多芯隔离线

■说明
●导体使用32AWG以上绞线，裸软铜或镀锡软铜线
●PVC绝缘
●可加上裸软铜或镀锡软铜线继续隔离
●PVC被覆
●额定温度：80℃；额定电压：300volts
●可通过UL VW-1 垂直耐燃测试
●参考标准：UL 758， UL 1581

■应用：
●一般电子，电器设备内部配线

■PRODUCT DESCRIPTION：
●Tinned or bare,stranded or solid copper conductor,32AWG minimum.
●Color-coded PVC insulation.
●Tinned or bare copper wire spiral shield available.
●PVC jacket.
●Rated temperature：80℃. Rated voltage：300 volts.
●Passes UL VW - 1SC vertical flame test.
●Reference standard：UL subject 758，UL 1581.

■ APPLICATIONS：
●For general purpose internal wiring of electronicand electrical equipment.
